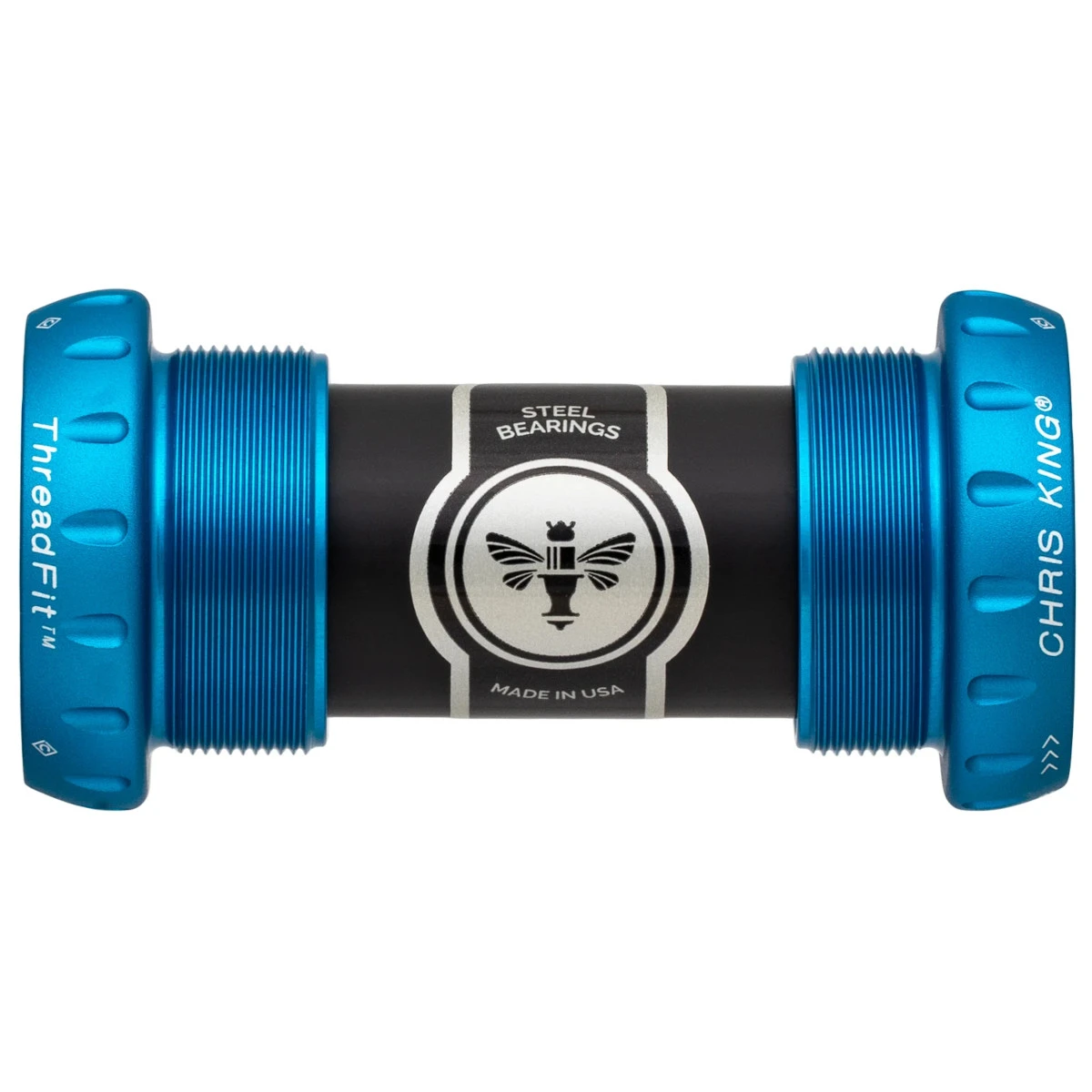

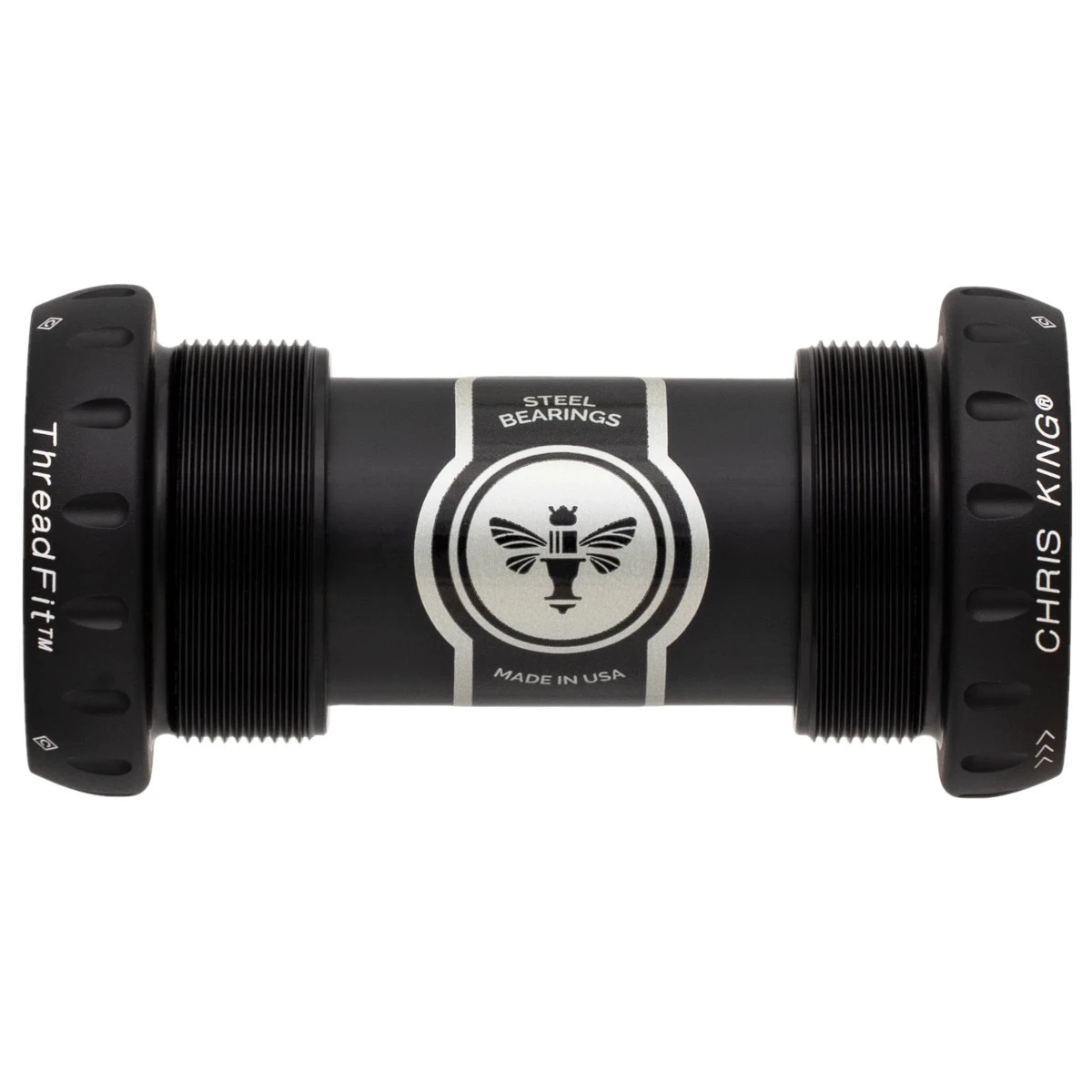

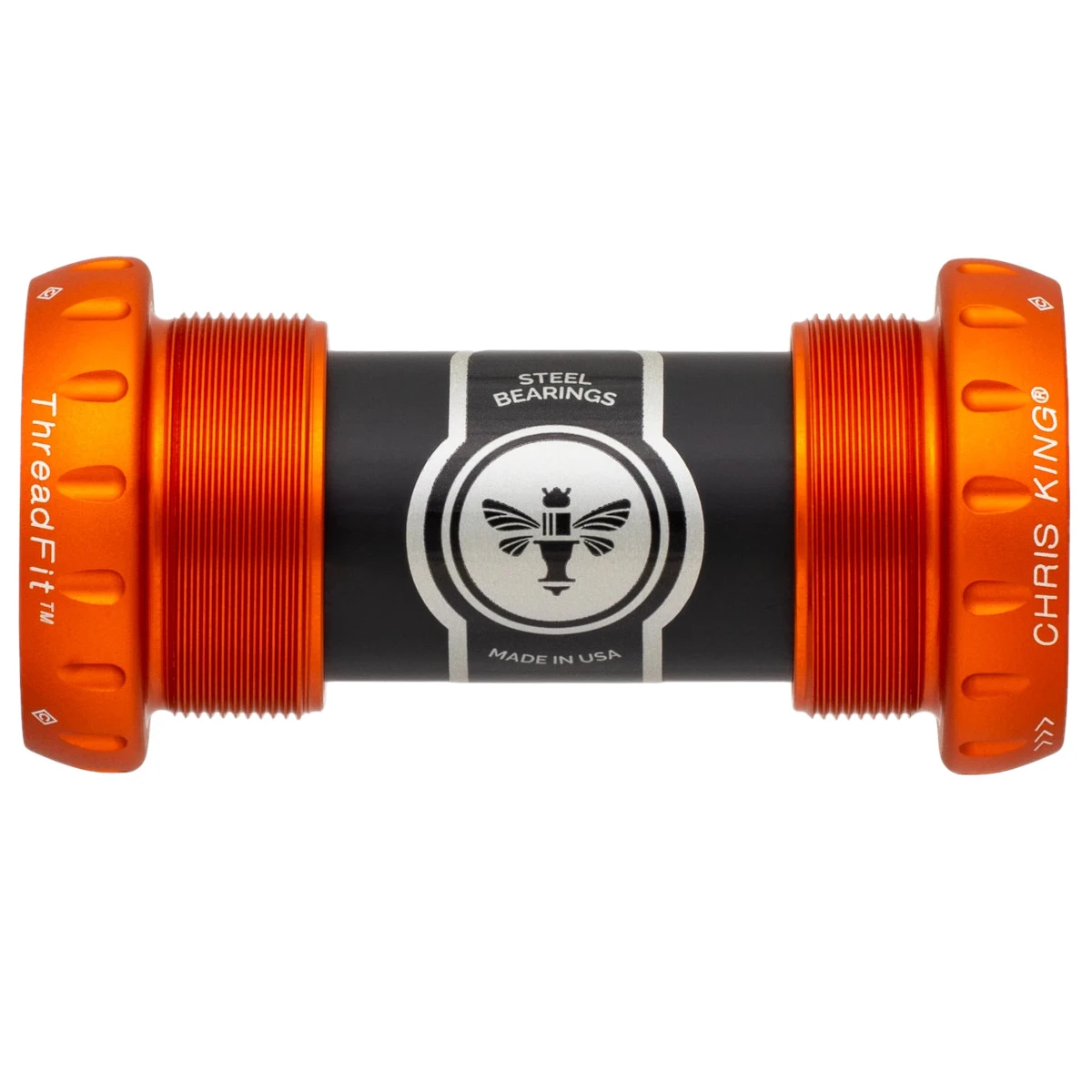

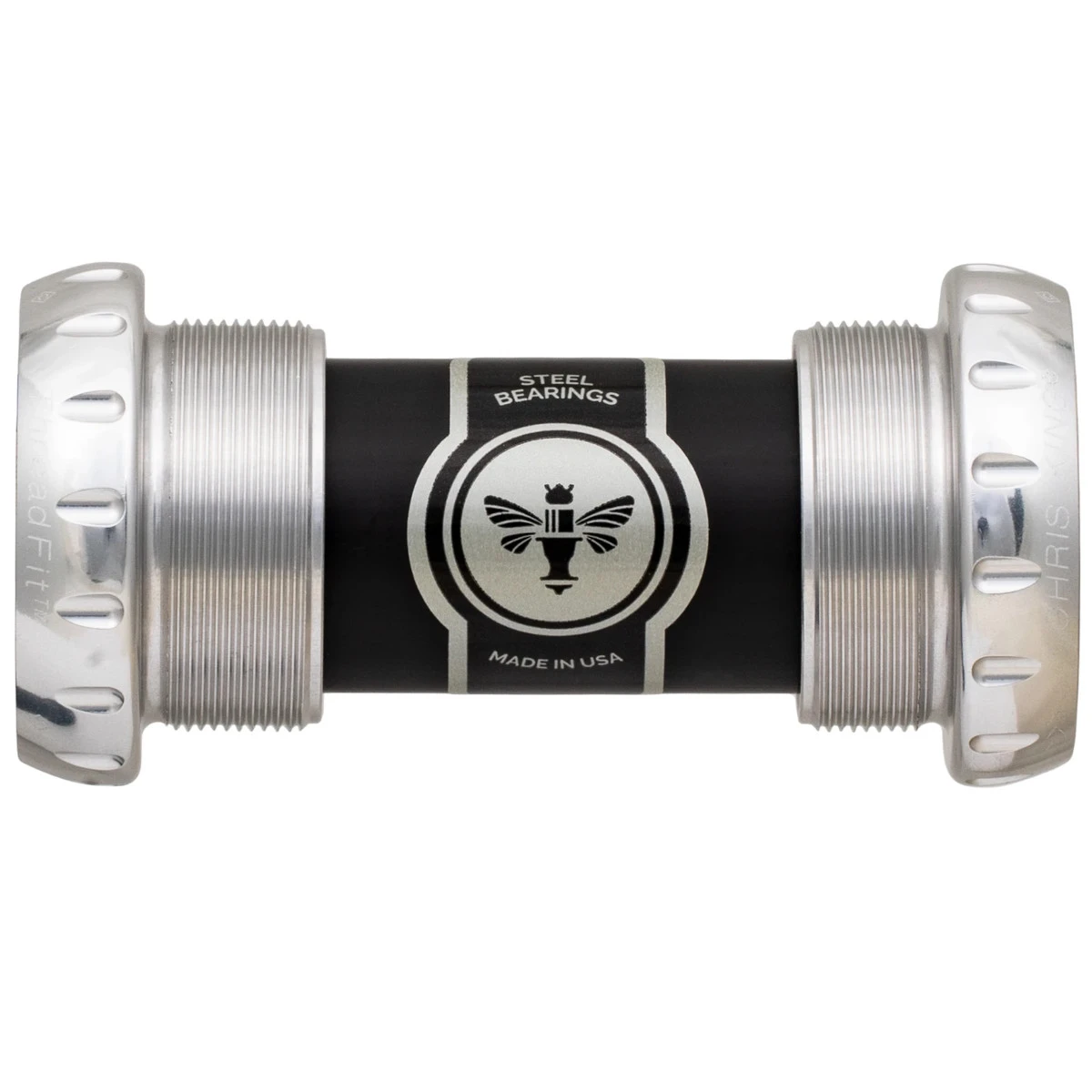

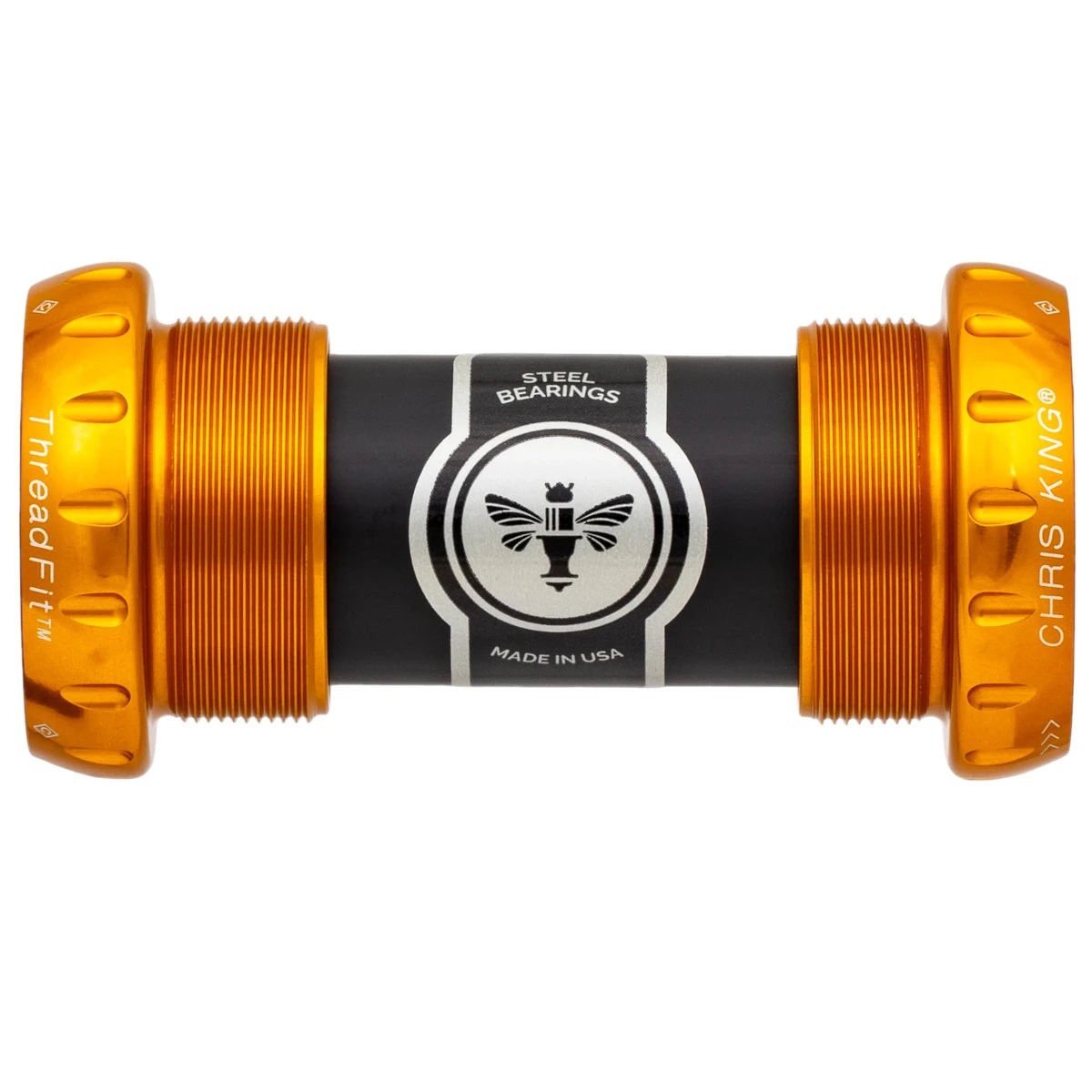

Chris-king Chris King ThreadFit 24 Bottom Bracket – BSA-68/73-24 – Ceramic Bearings

For over 35 years Chris King has been building probably the best sealed bearings. This extensive development work also flows into the particularly high-quality ThreadFit 24 bottom bracket as well as their ceramic bearings. To create a precise and functional interface between the bottom bracket shell on the frame and the 24mm crank, the ThreadFit™ 24 bottom bracket ensures that the crank turns easily and without interference.

It is equipped with ceramic bearings which are embedded in external bearing shells. Due to a special manufacturing process, Chris King bearings contain more balls than most conventional bottom brackets. This means that the Chris King bottom bracket is ready to take on anything your bike adventures might throw at it. Moreover, the specially developed sealing system allows for easy greasing with Chris King bottom bracket adapters for grease guns.

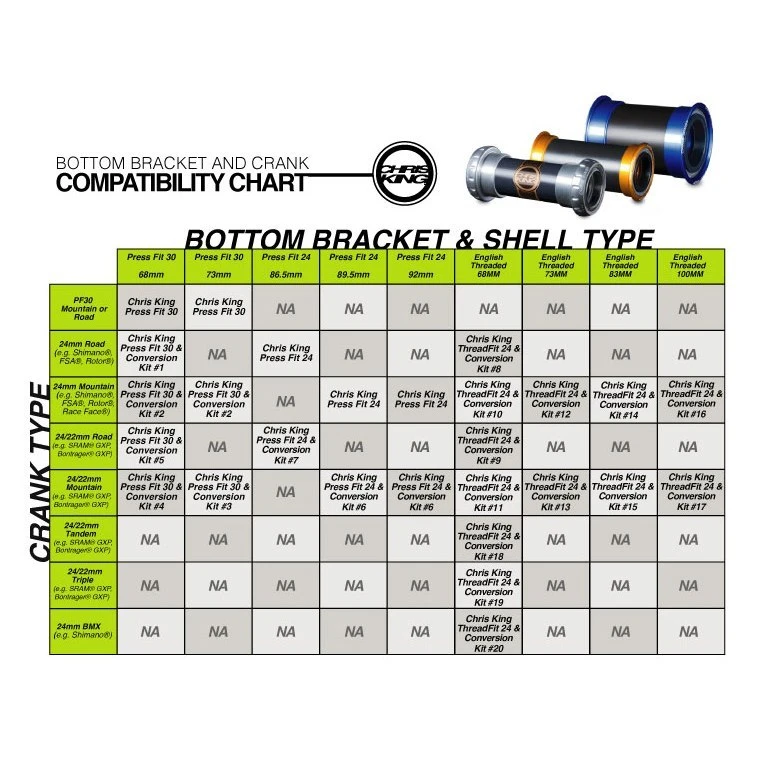

The Chris King Press Fit 24 bottom bracket is compatible with cranks from Shimano, Rotor, Race Face and FSA with 24 mm hollow shafts as well as with the optionally available 24/22 mm hollow shaft conversion kit.

Housing width: 68/73 mm
83/100 mm (through conversion kit)

Note on Chris King bottom brackets

To mount a crank with the Chris King bottom bracket, you also need a Chris King Fit Kit conversion set. These are not part of the scope of delivery and can be purchased in the BIKE24 shop.

For further information, please refer to the PDFs that can be downloaded under attachments. Available in English language.
