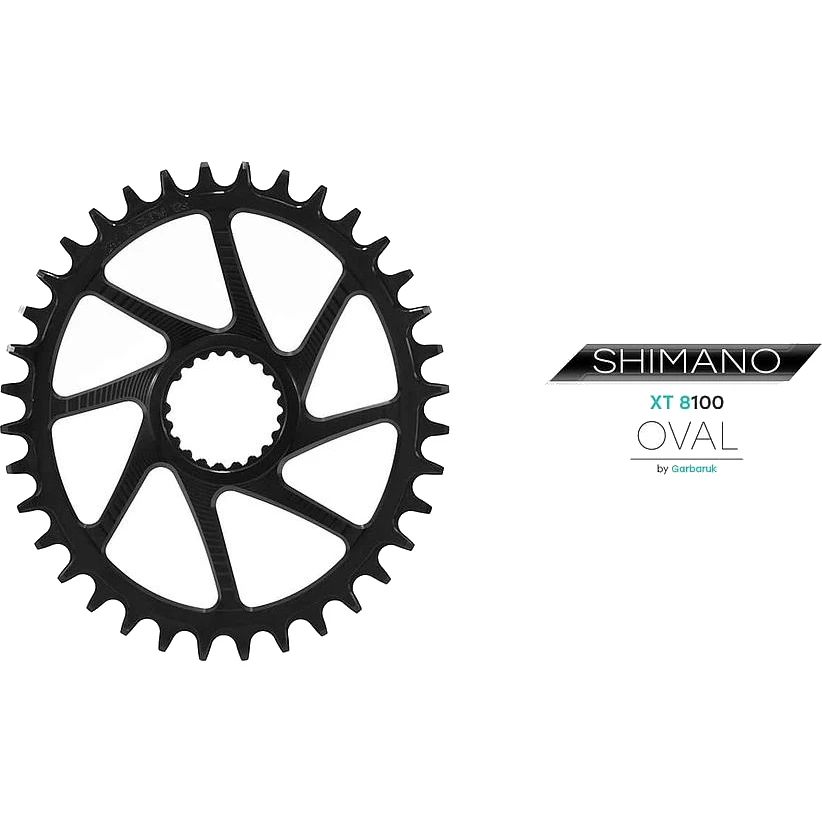

Garbaruk Melon MTB Chainring – Direct Mount / Oval / Narrow-Wide – For Shimano Deore XT M8100 / SLX M7100 – Black

Enhance the performance of your bike with a Narrow-Wide chainring made by Garbaruk. The oval, aluminium Direct Mount chainring is compatible with the as well as the 1/2-speed crank.

The special feature of narrow-wide chainrings is the teeth’s changing width; narrow and wide teeth alternate to prevent chain dropping. In addition, Garbaruk chainrings feature an increased tooth height which improves the chain retention while the bike is shivering and jolting. Compared to regular chainrings, the special tooth shape guarantees a tighter contact with chain and softer pedaling.

To reach an optimal drivetrain chainline value, chainrings by Garbaruk’s feature which means that each number of teeth has got its own individual chainline. Apart from this, chamfered edges and wide mud gaps keep the chainring from getting too dirty. The Garbaruk chainrings are made of highly durable 7075 aluminium which not only guarantees a long lifetime, but also makes it possible to reduce the overall bicycle weight in a range between 150 and 400 grams (without front derailleur and chain guide).

Features of the Garbaruk Oval Narrow-Wide Shimano M7100/M8100 Chainring:

• 12% ovality
• 108° timing after TDC (top dead center)
• Variable teeth thickness prevents chain dropping
• Special tooth shape guarantees a tighter contact with chain and softer pedaling (in comparison with regular chainrings)
• Chamfered edges and wide mud gap keeps the ring from getting muddy
• Increased tooth height improves chain retention while the bike is shivering and jolting
• Overall bicycle weight reduction in the range of 150-400 grams (with no front derailleur and chainguide)
• Manufactured using highly durable aluminum alloy
• Compatibility: Shimano M7100/M7120/M8100/M8120 Direct Mount cranksets, 9 up to 12-Speed MTB chains

Oval chainrings’ advantages

• Even at-the-wheel distribution of pedaling torque
• Improved responsiveness and pedaling smoothness, narrower dead spots and increased span of your gluteus and hamstrings
• Easier uphill riding, especially on soft and slippery terrains
• Increased pedaling efficiency

Your advantages with Garbaruk direct mount chainrings

• You get a wide range of chainring sizes to choose from.
• You can reach an optimal drivetrain chainline value with variable chainline technology (VCLT).
• You save bike weight by not using crankset spider and you can opt for the chainring with an appropriate specs for your drivetrain.

Further details of the chainring

Material: 7075-T651 Aluminium Alloy
Weight supplement:
28 teeth,
approx. 59 grams (30 teeth),
approx. 65 grams (32 teeth),
approx. 67 grams (34 teeth),
approx. 75 grams (36 teeth),
approx. 78 grams (38 teeth),
