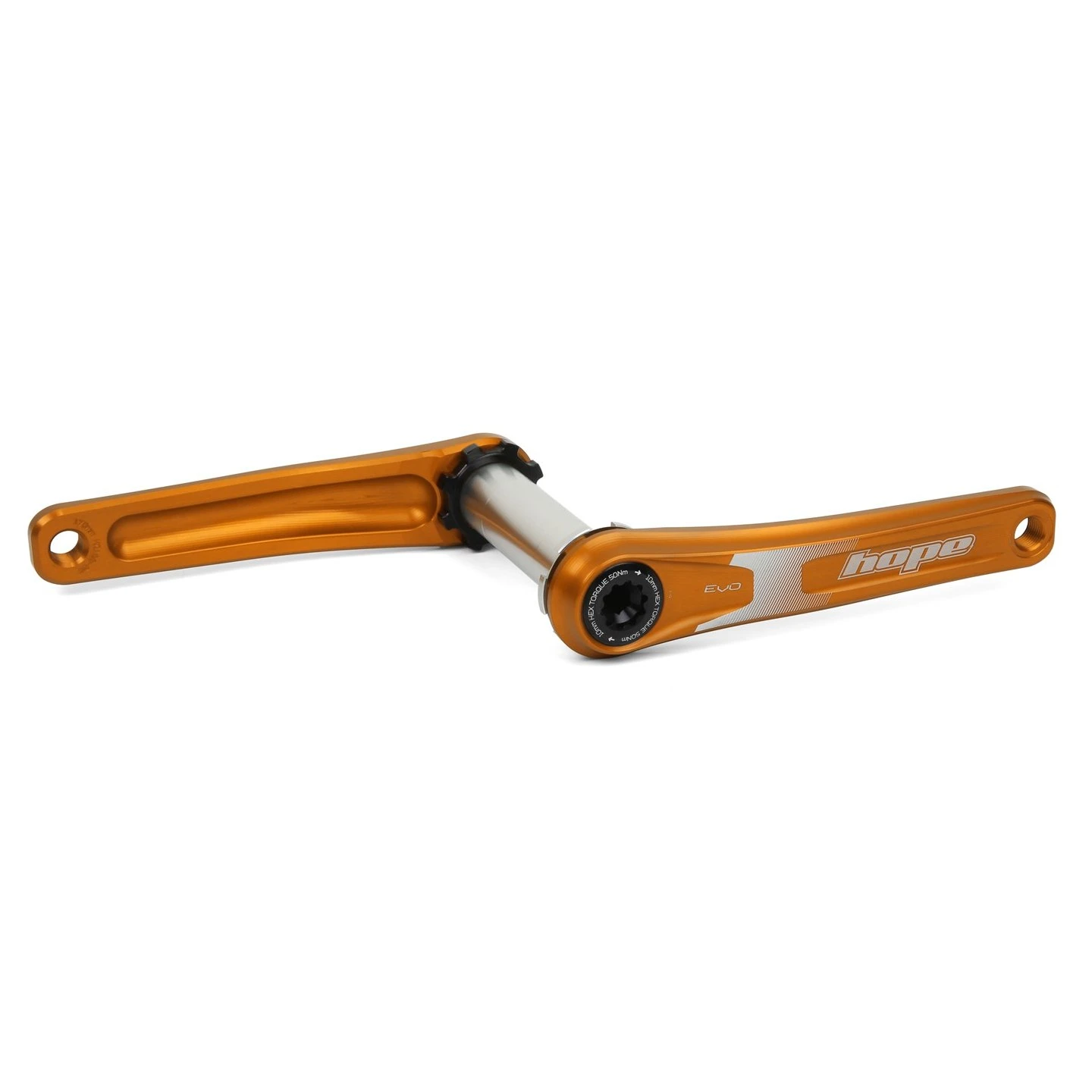

Hope EVO Crank Without Spider – DH – 83mm – Orange

Hope has continued the development of their popular cranksets. The result is the EVO model which sets a benchmark for current aluminium MTB cranks. The latest FEA analysis tools (Finite Element Analysis), rigorous lab testing and extensive field testing mean the EVO crank is both lighter and stiffer than previous models.

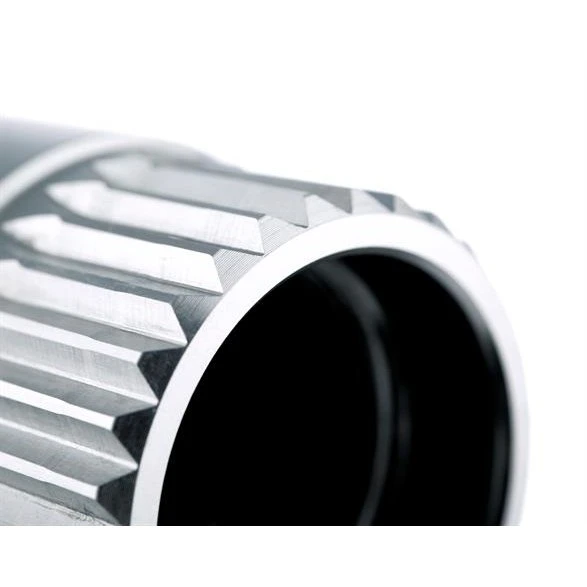

The Hope EVO crank is now featuring a self-extracting axle/arm interface to simplify fitting and removal as well as a versatile Spline mount to use Direct Mount chainrings or spiders. The crank arms are made of forged and CNC-machined aluminium 7150 while the 30 mm oversize axle consists of 7075 series aluminium.

Designed, tested and manufactured in Barnoldswick, UK.

Technical details of the Hope EVO crank

• material:
  crank arms: aluminium 7150
  axle / shaft: aluminium 7075
• crank arm length: 165 / 170 / 175 mm
• BB shell width: 83 mm
• axle diameter: 30 mm
• total axle length: 148.5 mm

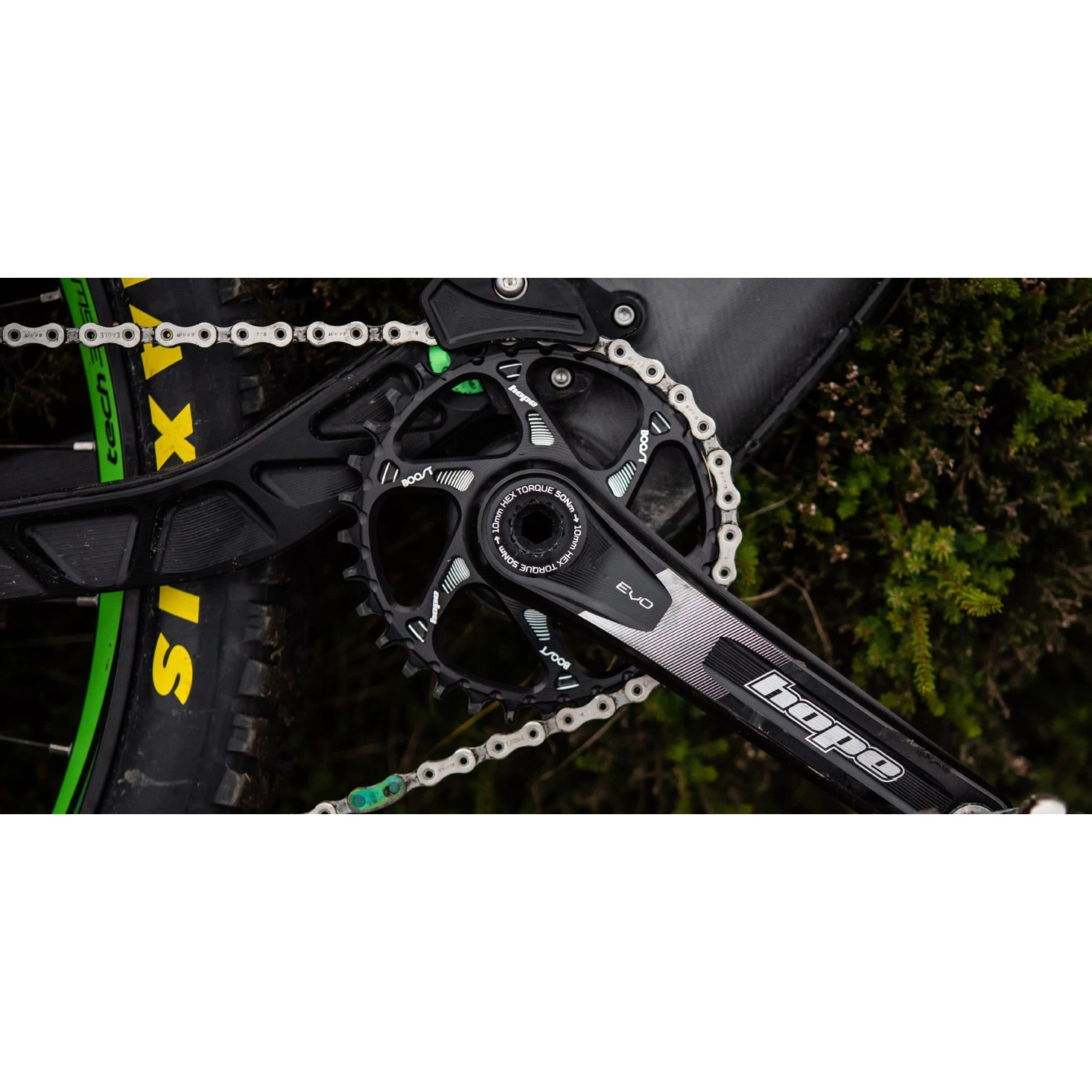

• chainring mount: Direct Mount
• charinring compatibility:
  drivetrain system: 9-/10-/11-/12-speed
  chainring sizes: 26 to 36 teeth (one-piece, without spider)
  B.C.D. (spider): 104 mm (1-speed) | 104 / 64 mm (2-speed)
• rear O.L.D.: 150 / 157 mm (DH/Downhill)
• chain line:
  1-speed drivetrain: 56.5 mm
  2-speed drivetrain: 60.5 mm (outer) / 52.5 mm (inner)
• Q-Factor: 182 mm
• weight: approx. 560 grams (170 mm)

BB shell width: 83mm
Included in delivery: crank arms incl. hollow axle
Material: Aluminium
Weight supplement: XC version, 170 mm | manufacturer’s specs
