– The completely redesigned Dorado Pro is ready to turn the downhill world upside down! An upside-down fork with carbon casting, 37mm stanchions and revised internals, the Dorado Pro is the absolute pinnacle of suspension technology. The stiffer chassis is paired with a brand new, closed-loop TPC+ cartridge and an upgraded air spring with IRT adjuster. These technologies – combined into one ultimate platform – offer more than enough adjustability to excite any suspension tuner, no matter how savvy. At the same time, the Dorado Pro is so easy to handle that truly any rider can adjust their fork with ease.
Â
Â

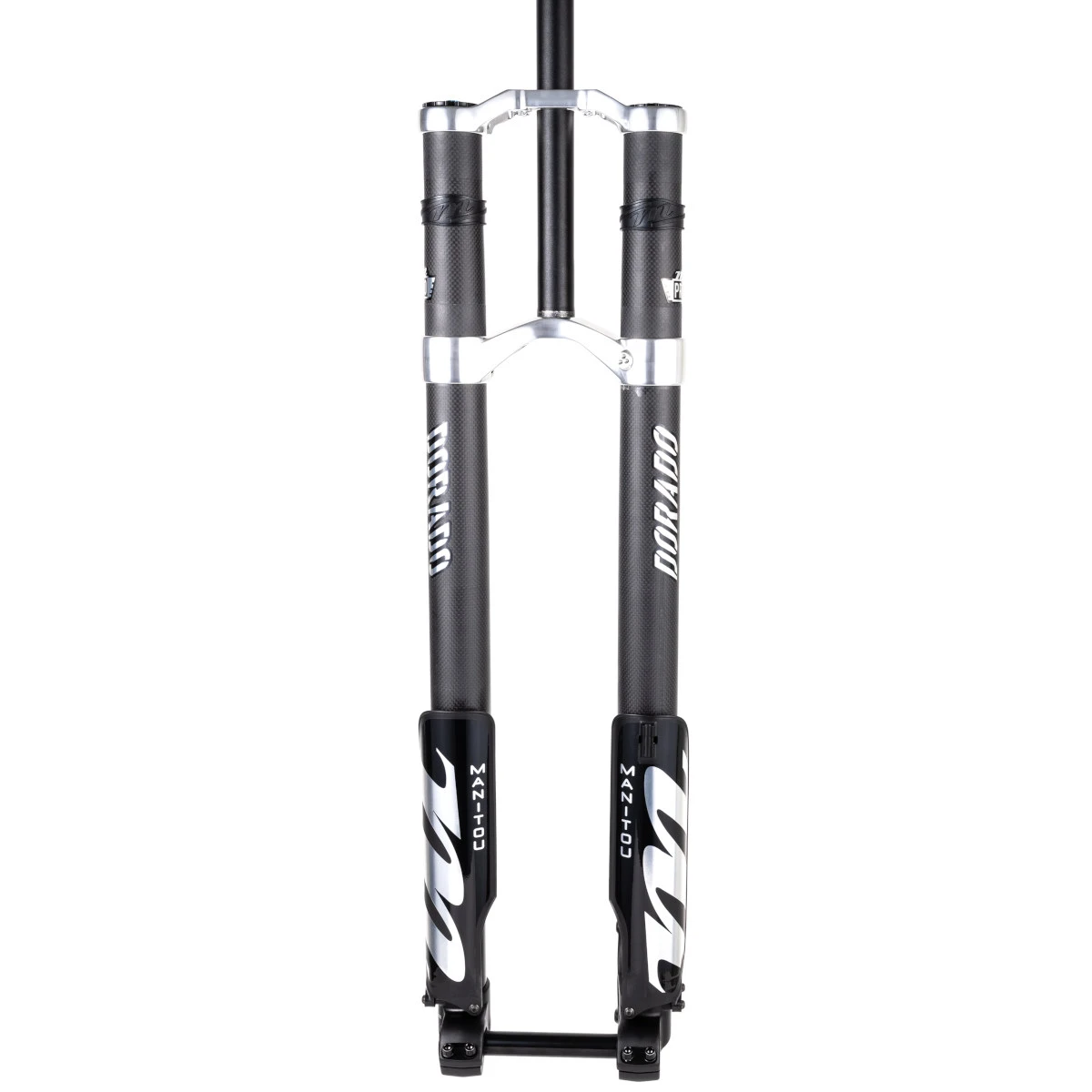

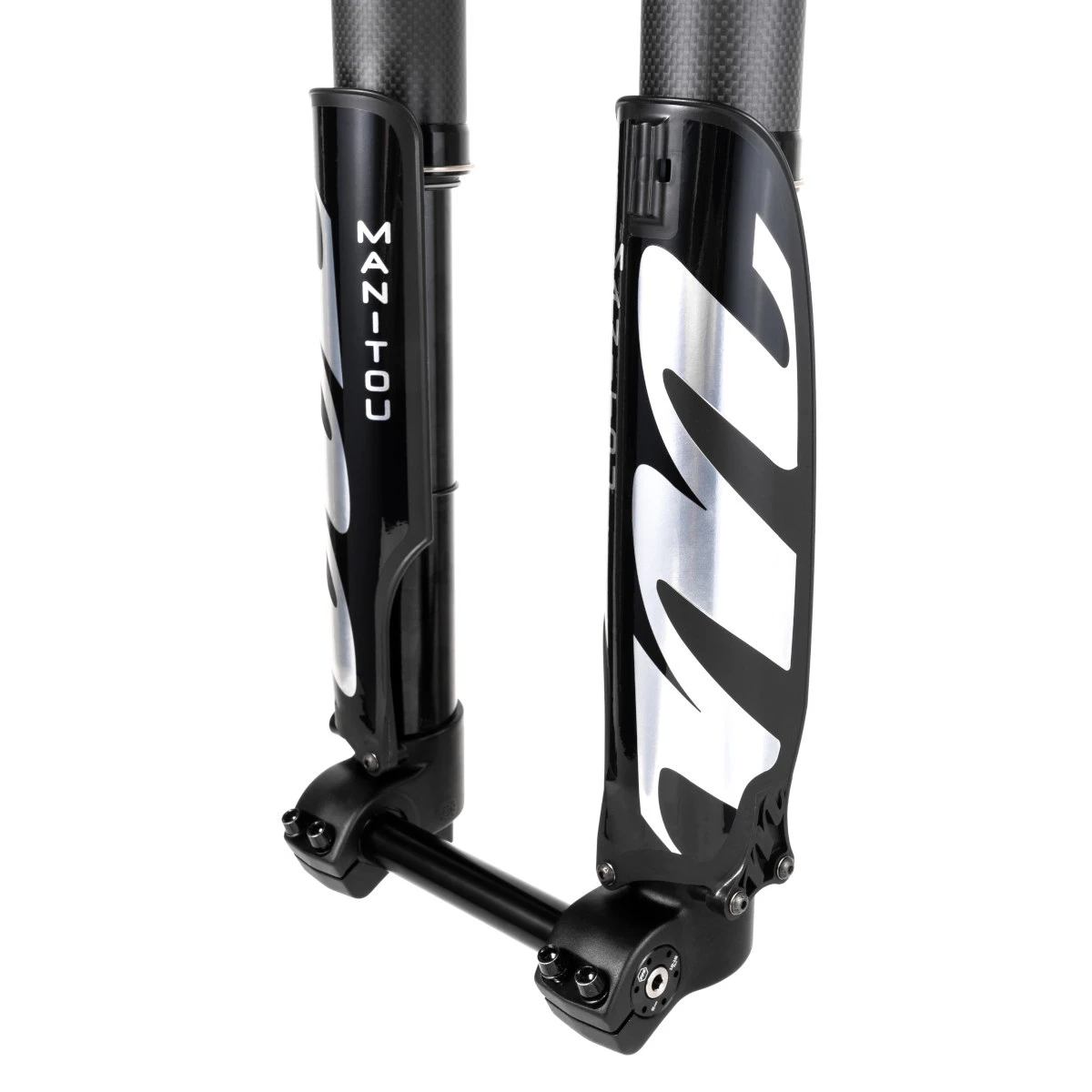

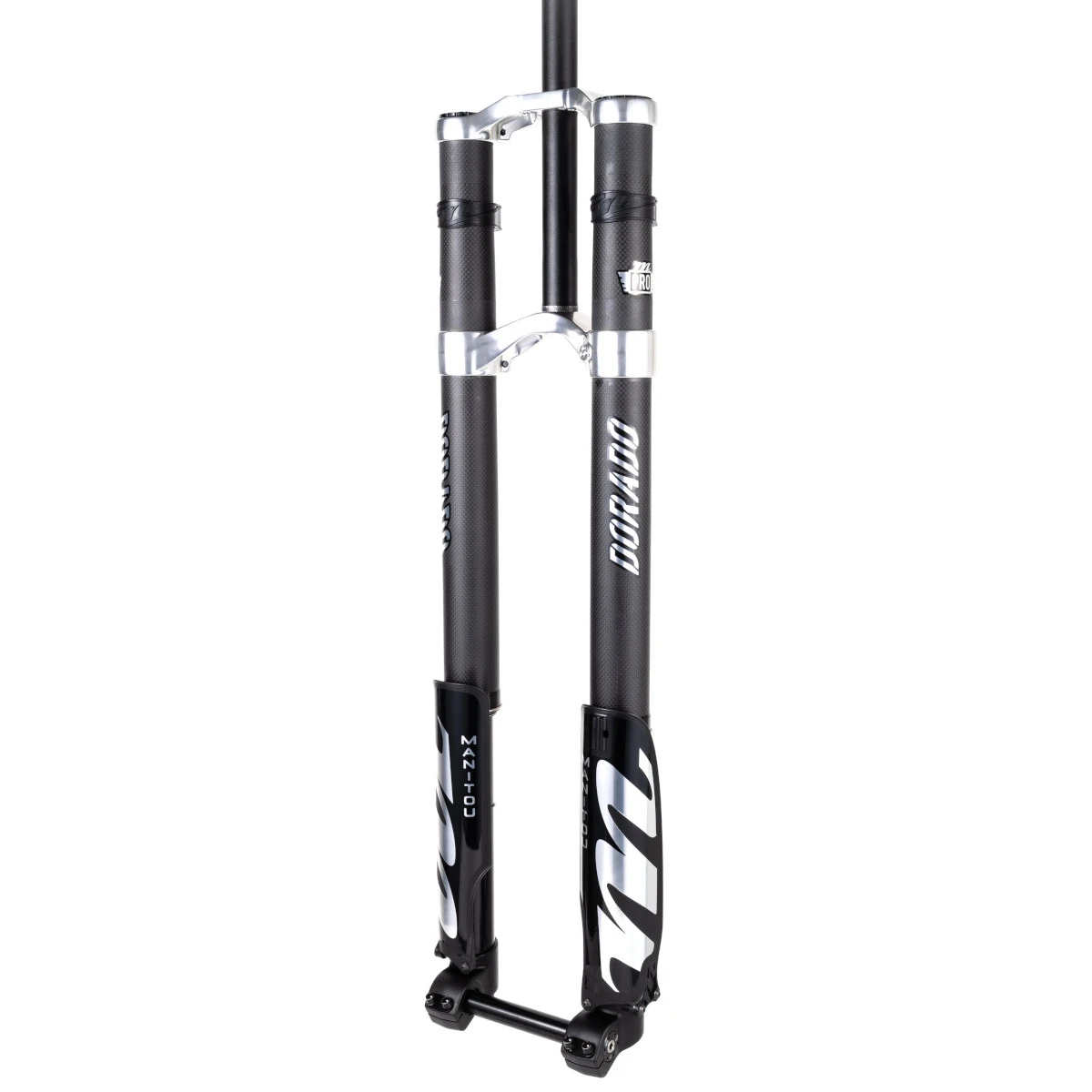

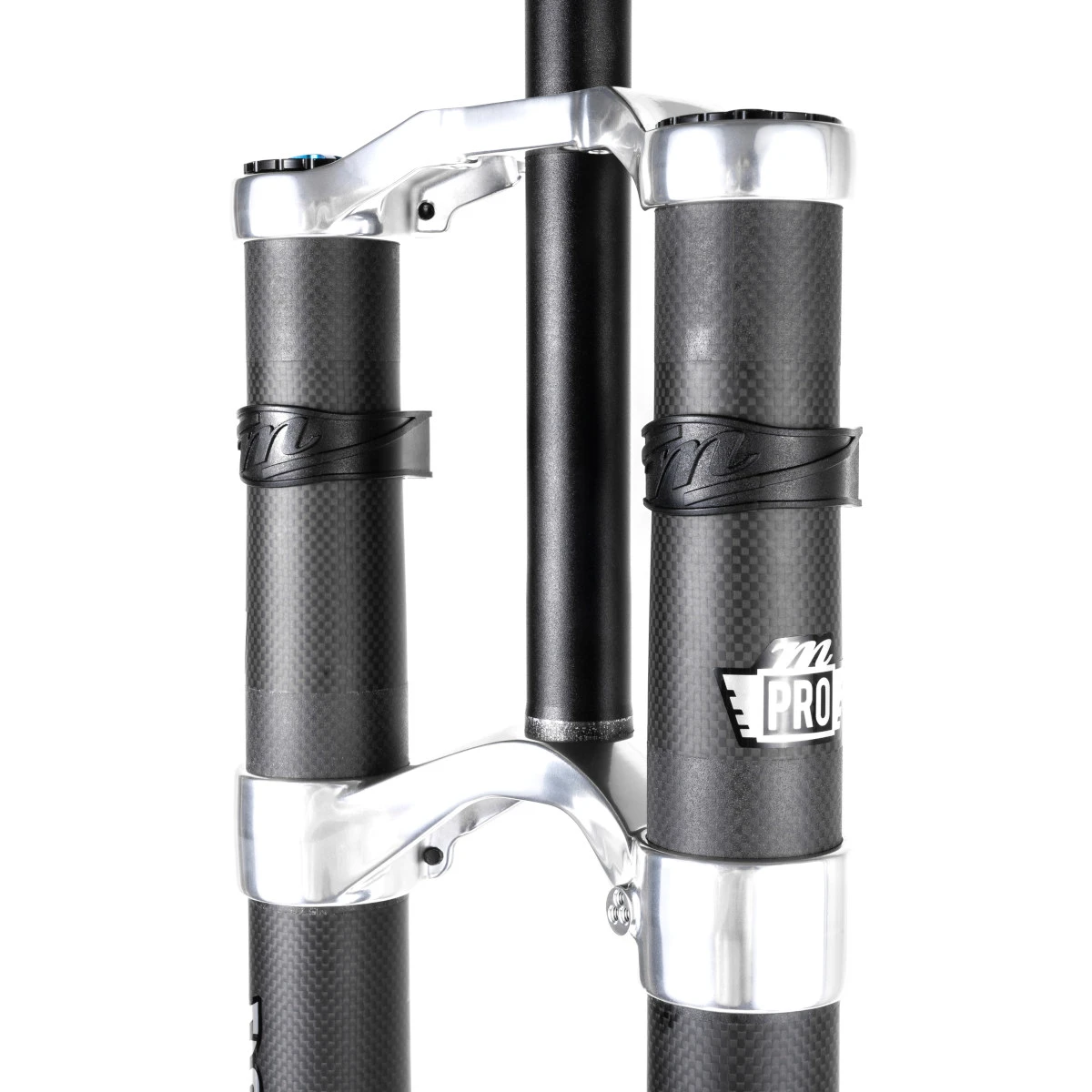

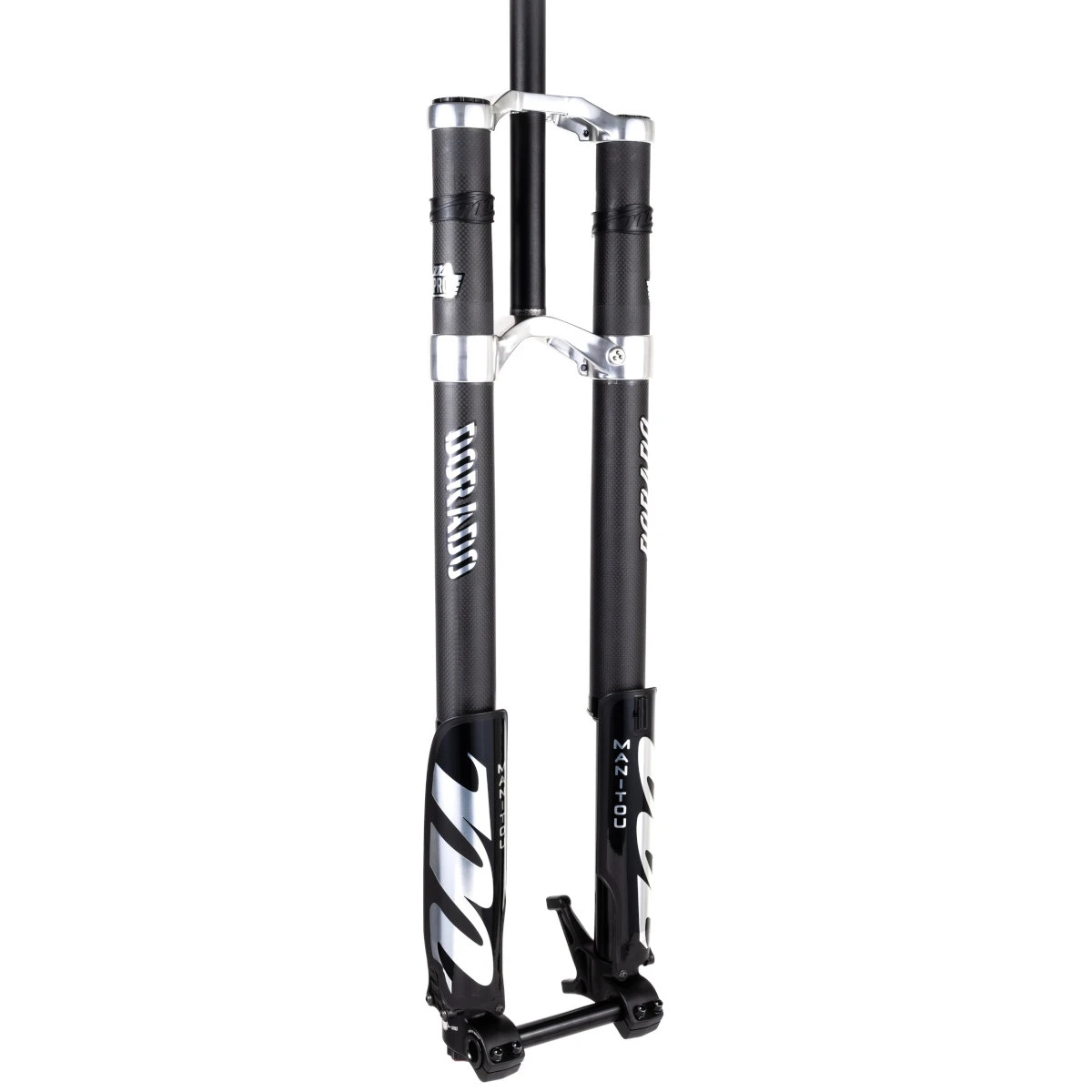

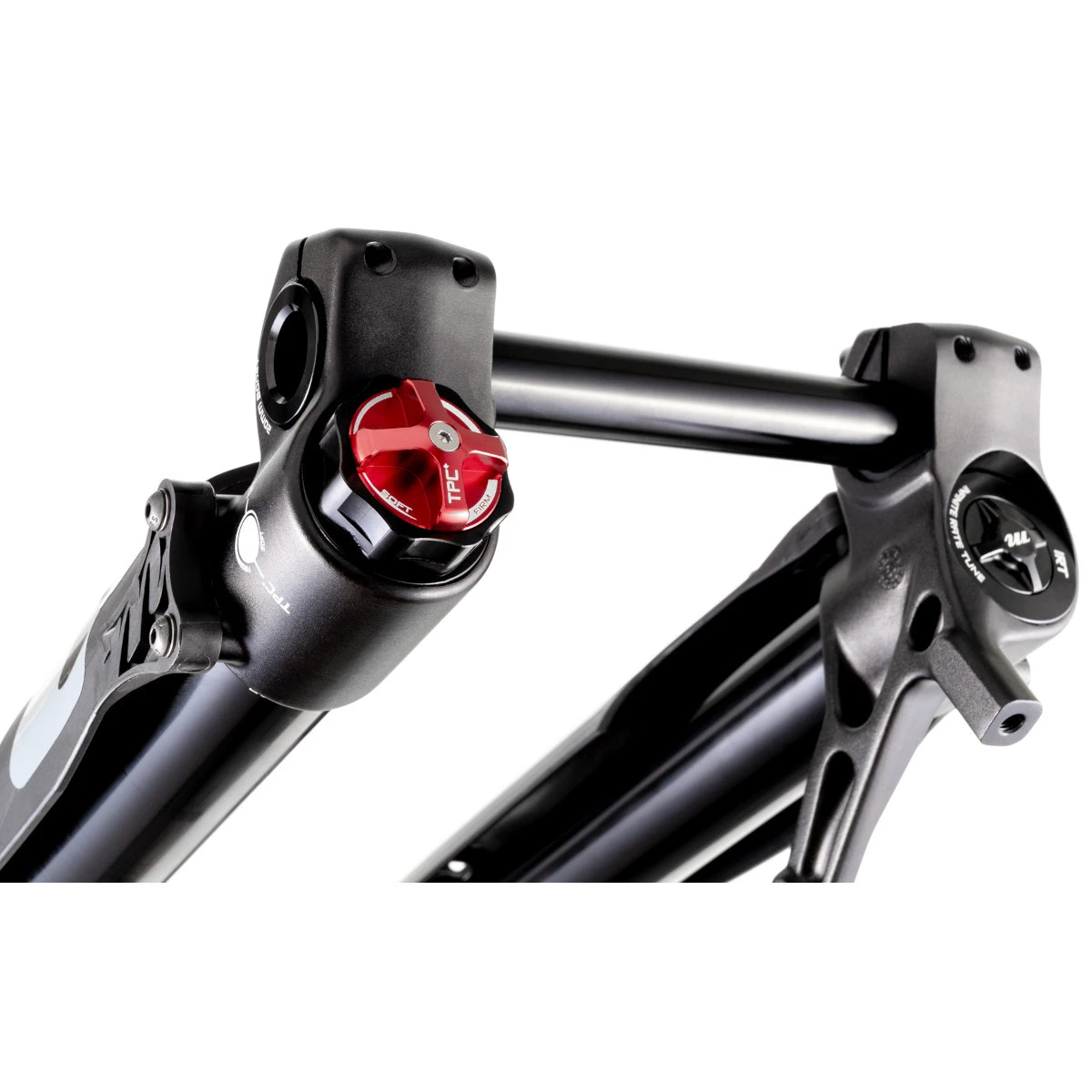

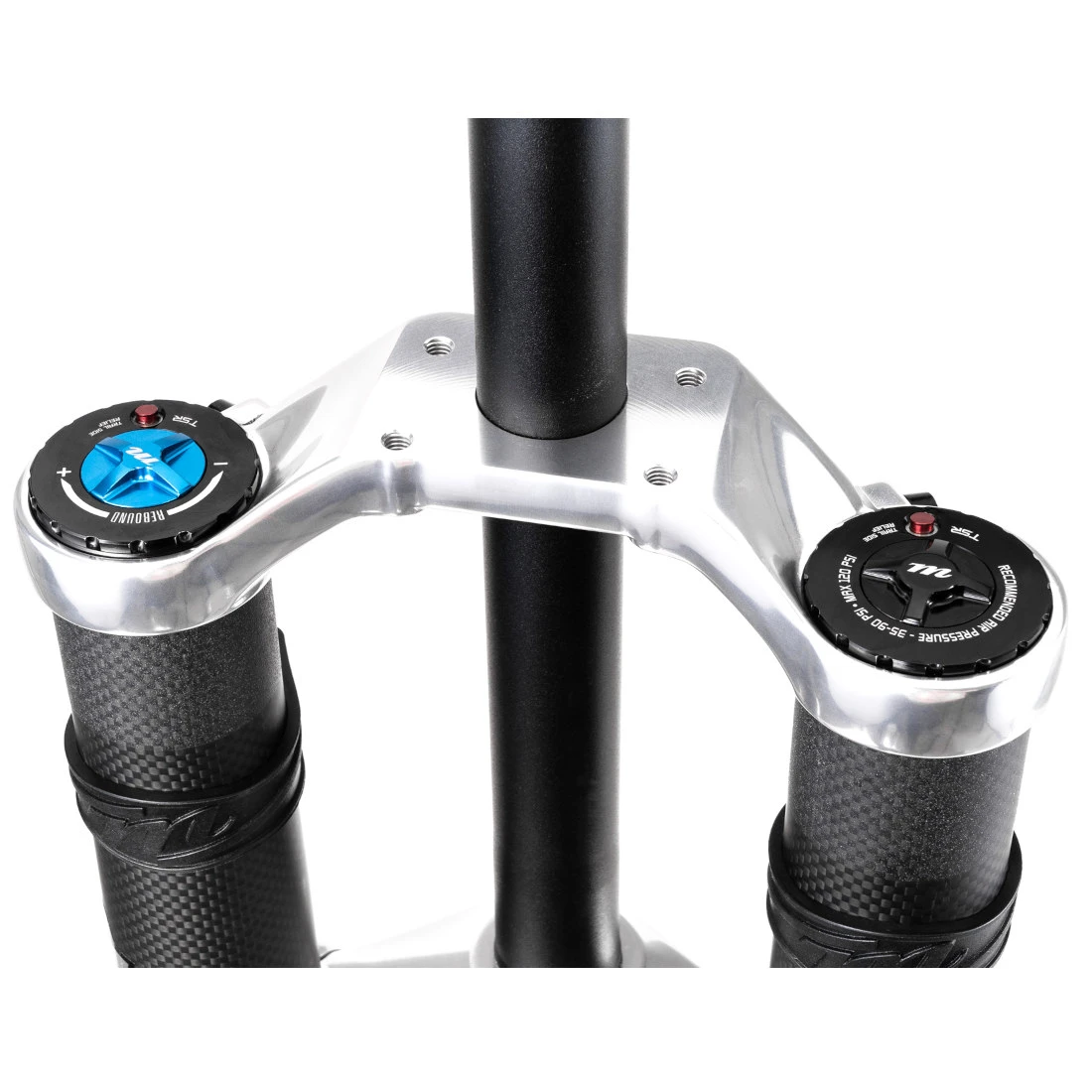

Specs of the Manitou Dorado Pro 29 inch Carbon suspension fork
- Travel: 180, 190, 203 mm (internally adjustable)
- Spring: Dorado Air with Infinite Rate Tune (IRT)
- Compression Damping: Sealed Cartridge TPC+ with Hydraulic Bottom Out (HBO)
- Rebound Damping: Sealed Cartridge TPC
- Adjustments: Air, IRT, Rebound, HS, and LS Compression
- Options: Fender
- Not E-Bike compatible
Â
An adjustable bridge with different offsets allows 27.5″ and 29″ wheels to ride with one fork.
Scope of delivery: suspension fork incl. thru axle
| Product Name | Manitou Dorado Pro 29 Inch Carbon Fork – 180-203mm – 57mm Offset Drop Crown – Straight – 20x110mm Boost |
|---|---|
| suspension | Dorado Air mit IRT |
| weight | 2970g |
| fork construction | Up-Side-Down |
| Color | Black |
| Model year | 2022 |
| max. disc diameter | 223mm |
| disc brake mount | PM (8") 203mm |
| Steerer tube Ø | 1 1/8" straight ahead |
| max tire width | 67mm |
| fork offset | 57mm |
| damping | TPC+ mit HBO |
| stanchion diameter | 37mm |
| Manufacturer | Manitou |
| fork length (axle to crown) | 602mm |
| fork/shock adjustability | Pressure positive air chamber, Air volume, Low speed compression, High speed compression, Low speed rebound |
| Rear Shock/Spring Version | Air Shock |
| axle standard | 20x110mm Boost (FW) |
| travel fork | 180mm, 190mm, 200/203mm |
| wheel size | 27,5" / 650B (584mm), 29" (622mm) |
| brake type | Disc Brake |
| usage bikesport | MTB, Downhill, Freeride |
| material | Aluminium, Carbon |
| activity | Cycling |
| Item Code | MAN547714 |
| manufacturer item code | 191-37419-A201 |
