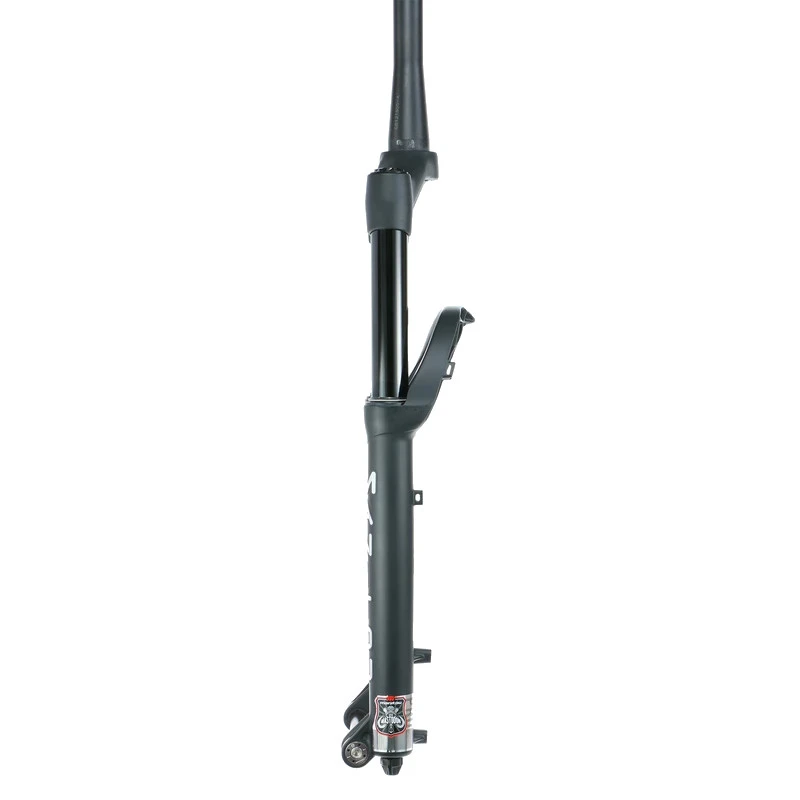

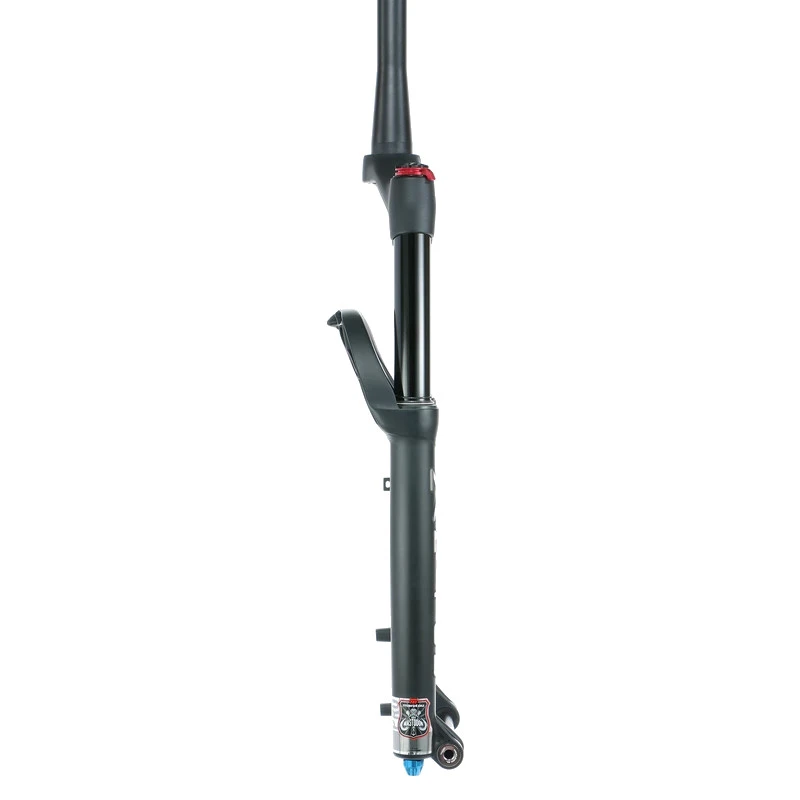

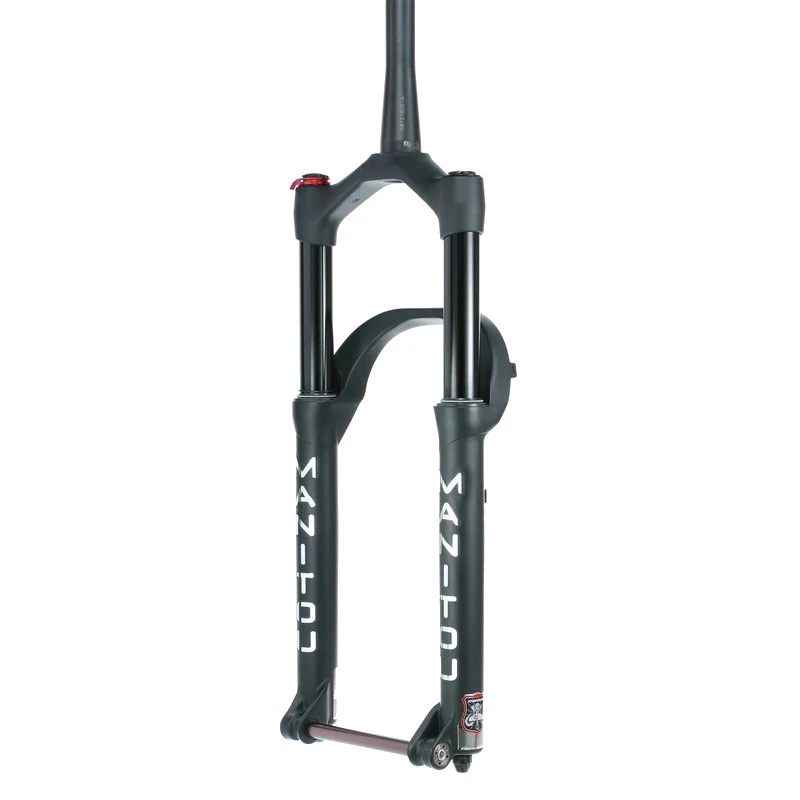

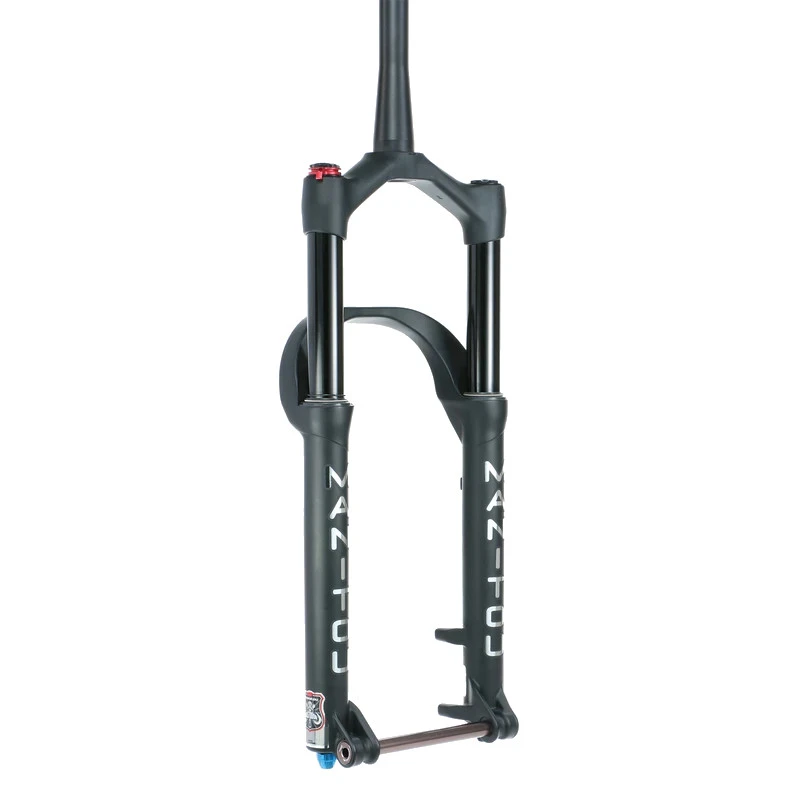

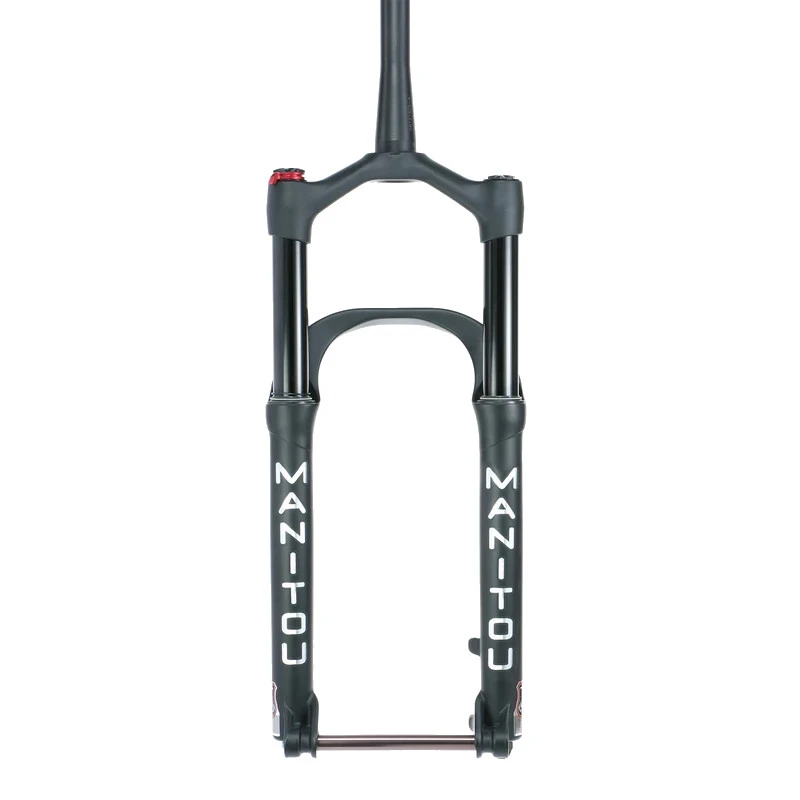

Manitou Mastodon Pro EXT 26″ / 27.5″ Fatbike Fork – 120mm – Tapered – 15x150mm – Black Matt

The is based on Manitou’s approved and tested All Mountain platform, which has been specially developed for Fatbikes. The main focus was on high stiffness with the wide width as well as optimum function at extreme temperatures. This ride height version . The travel can be lowered internal to 140 mm.

Thanks to the 34 mm stanchions, the fork can score with an exceedingly appropriate stiffness (25% more than the competition), as well as a fantastic steering precision. The consistent performance of compression and compression damping ensures safety, especially during braking maneuvers and in curves. Thanks to Manitou’s expertise in snowmobile racing, the Mastodon is perfect for cold temperatures up to -15°.

Compression damping: MC2, Incremental platform adjust
Rebound damping: adjustable cartridge TPC
Spring: Dorado Air

Specifications of the Manitou Mastodon Pro ETD Fatbike fork

• available size: 26/27,5″.
• Installation height: 531-571 mm (EXT)
• Spring travel: -140mm (EXT); internally adjustable
• Spring: Dorado Air air spring with IVA (Incremental Volume Adjust)
• Compression: MC2
• Rebound: Adjustable TPC cartridge
• Adjustment possibilities: Air pressure, air chamber volume, rebound, compression (low and high speed)
• steerer tube: 1,5″ Tapered
• Fork crown: Made of forged aluminum, hollow milled
• stanchion diameter: 34 mm
• stanchion material: butted AL 7000
• Brake mount: 180 mm Postmount (max. 203 mm)
• Axle: 15×150 mm Hexlock SL
• Max tire size: 26×5.15″/27,5×4.5″ (EXT)
