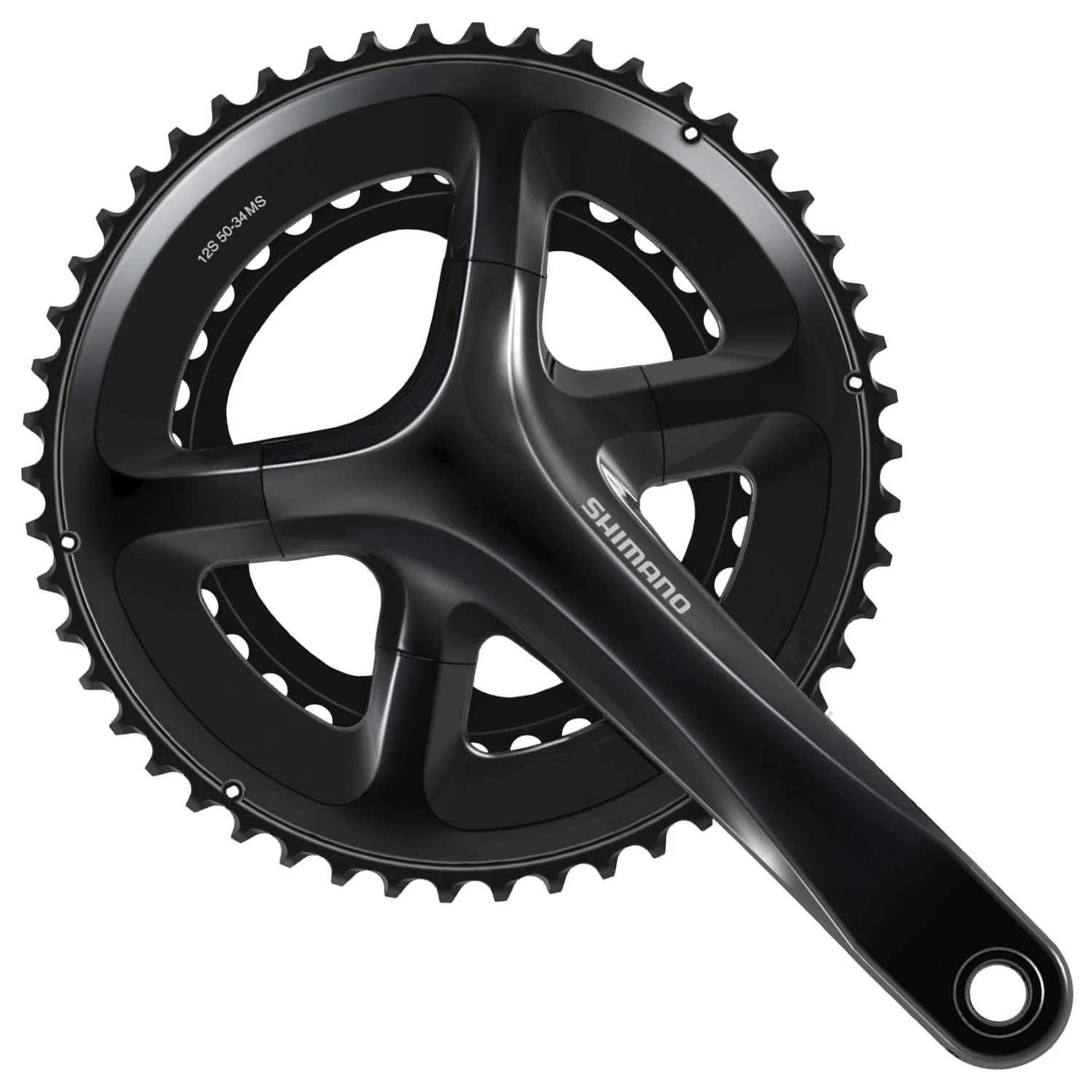

The elegant Shimano FC-RS520 crankset at the level of the 105 R7100 series offers excellent value for money and is also compatible with 2×12-speed components of the Dura Ace and Ultegra groups. The two-piece design with an integrated aluminum crank arm makes the crank not only very light, but also resistant. With its 4-arm construction, it is particularly suitable for modern road bike frames designed for disc brakes.
Also compatible with frames that feature a rear installation width of 135 mm and a chainstay length of 410 mm.
crank arms, inner chainring: aluminium (anodized)
outer chainring: aluminium (painted), resin
axle: steel (plated)
- front derailleur: , FD-R9250, FD-R8150
- bottom bracket (thread type): , BB-R9100, SM-BB9000, SM-BBR60, SM-BB6700, SM-BB5700, SM-BB4600
- bottom bracket (Press Fit): , SM-BB92-41B, SM-BB72-41B, SM-BB71-41B
- chain: , CN-M9100, CN-M8100, CN-M6100
(manufacturer recommendations, listing not final)
crankset (without bottom bracket)
| Crank | Arm Length, Chainring Ratio 165 mm, 50/34 Teeth, Arm Length, Chainring Ratio 170 mm, 50/34 Teeth, Arm Length, Chainring Ratio 172.5 mm, 50/34 Teeth, Arm Length, Chainring Ratio 175 mm, 50/34 Teeth |
|---|---|
| bottom bracket case width | 68mm, 70mm |
| Model year | 2023 |
| Q-factor | 150mm |
| chain line | 44.5mm |
| chainring mount | 2-speed |
| number of teeth | 50-34 |
| Road - bolt circle diameter | 110mm |
| bottom bracket axle profile | 24mm Hollow Shaft |
| Product Name | Shimano FC-RS520 Crankset – 2×12-speed |
| shifting system | 12-speed |
| crank arm length | 160, 165, 170, 172.5, 175 |
| usage bikesport | Road Bike |
| material | Aluminium |
| activity | Cycling |
| Item Code | SHI591402 |
| Manufacturer | Shimano Parts |
| manufacturer item code | EFCRS520MX04 (160 mm) |
