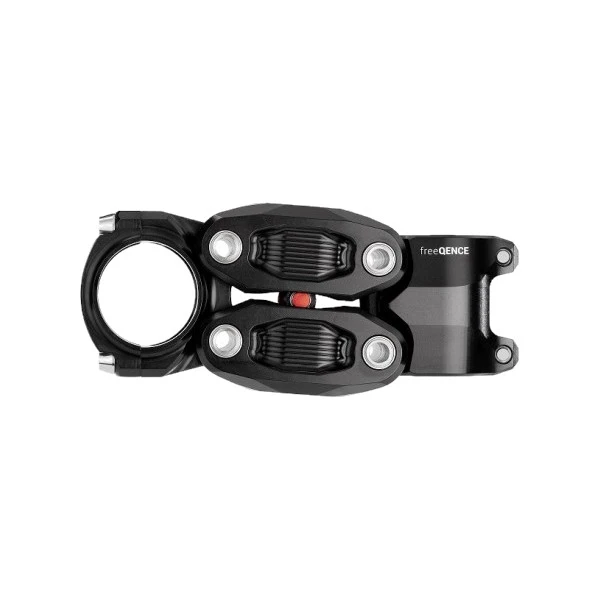

Vecnum FreeQENCE Suspension Stem – 31.8 | Ahead | 3° – Black

The Vecnum freeQENCE suspension stem absorbs up to 75 % of the vibrations and shocks and thus reduces your fatigue. You are more comfortable, faster and safer on roads, cobblestones, gravel, trails and in technical passages. The significant relief of the wrists can avoid tingling and numb hands. The maximum travel of 30 mm at zero position is divided into 20 mm positive travel and 10 mm negative travel. In principle, therefore, like SAG in a suspension fork. The suspended stem has a homogeneous, linear spring characteristic with strong end progression at both end stops.

Technical details of the Vecnum freeQENCE stem

• range of use: Road Bike, Gravel, Travel Bike
• material: aluminum 7075 (body), titanium (axles)
• travel: 30 mm (20 mm negative / 10 mm positive)
• diameter steerer tube: 1 1/8″
• diameter handlebar clamp: 31.8 mm
• stem angle: 3°
• clamp width handlebar: 46 mm
• clamp height steerer tube: 43 mm
• minimum length steerer tube: 42 mm
• winner Design & Innovation Award 2022

The torsionally stiff, ultra-compact parallelogram design guarantees optimal absorption of vertical shocks. Due to the elaborate kinematics, the spring characteristic is not influenced by the lever length, unlike conventional articulated stems. Whether in the hoods, drop or top position. The suspension or damping performance always remains the same and optimal.

The spring-loaded stem freeQENCE can be easily adjusted continuously to your weight or intended use via the 3 mm Allen bolt located on the right side. The patented spring linkage in the stem makes adjusting the spring characteristic easier than on any suspension fork.

stem incl. test gauge* and manual

* Only supplied with the freeQENCE 90 stem. Used to determine the minimum distance to the head tube.
