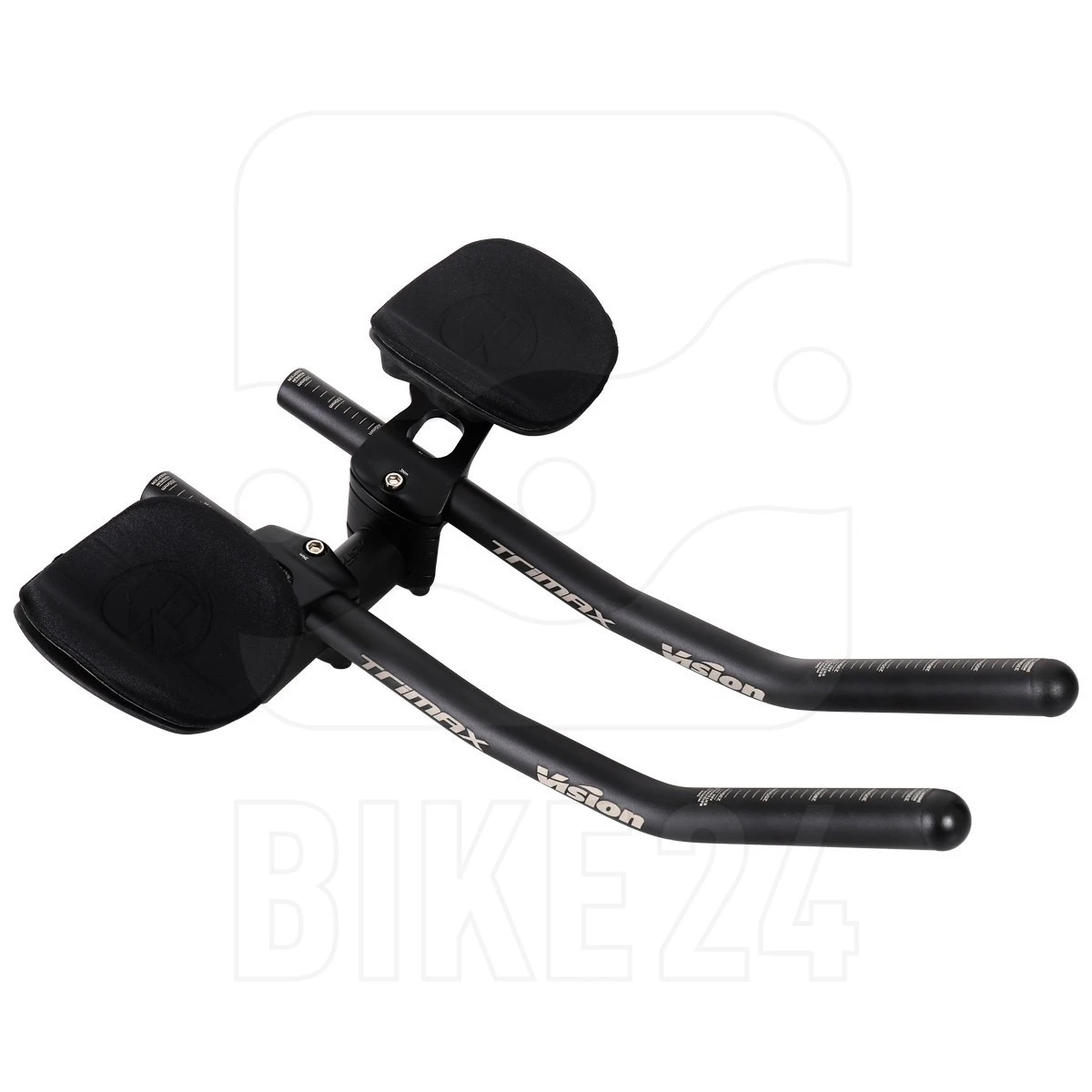

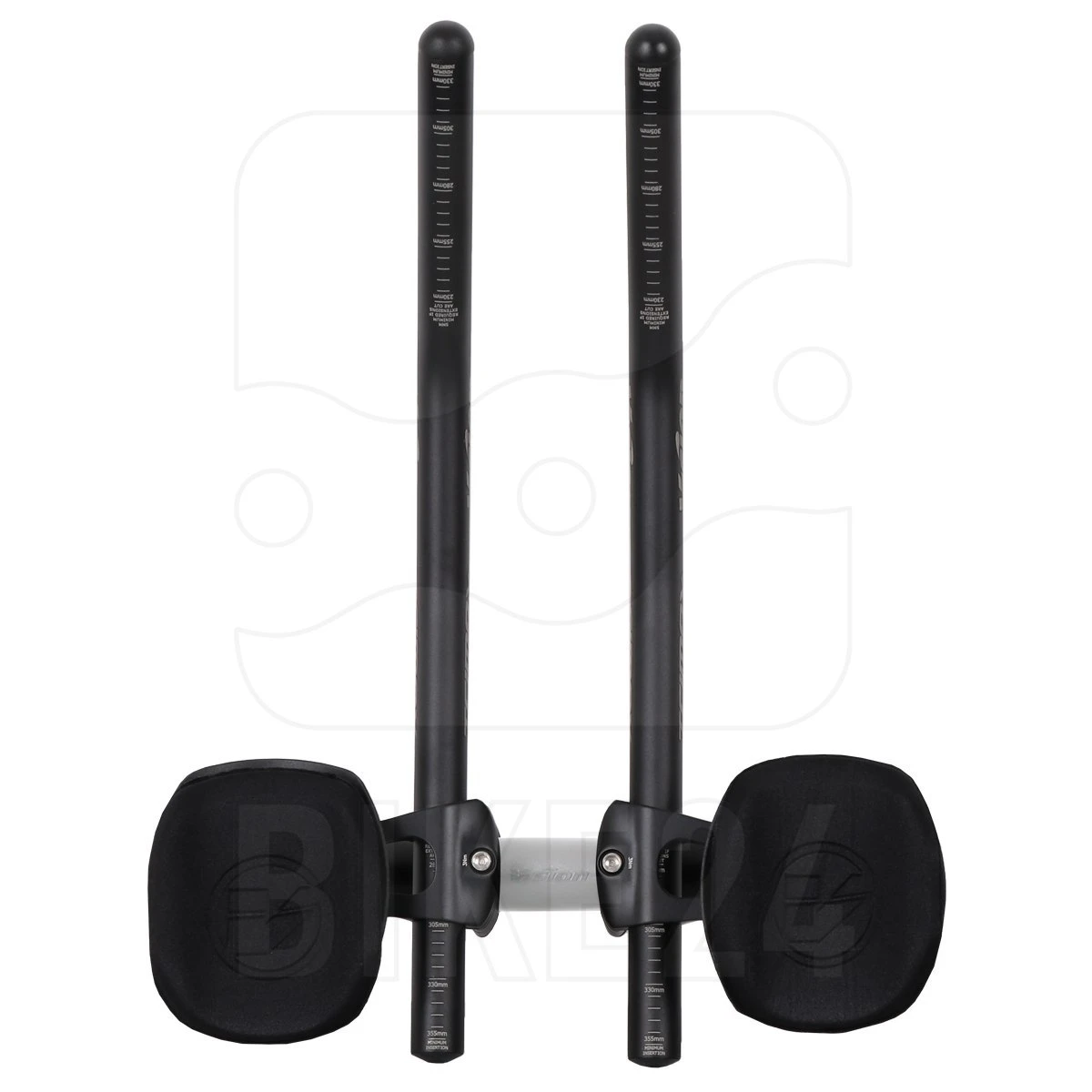

Vision TriMax Clip-On Aluminium J-Bend

The Vision TriMax is a high-quality and easily adjustable aluminium clip-on with fully internal cable routing.
The updated brackets and armrests increase the fit and adjustability ranges of stack, reach and width. This will be achieved thanks to quick and incremental X/Y/Z fit adjustments via open-access underside bolts.
The butted aluminium J-Bend (Ski Bend) extensions are adjustable from 280 up to 355 mm and are featuring Di2 compatible cable exits.
The armrest plates are equipped with deluxe molded low-profile pads and feature different mounting positions because of 40 mm armrest adjustment range.

Features

• Finish: black glossy with colored graphics
• for 31.8 mm base bars
• Stack: 70 – 145 mm
• Reach: -9 to 99 mm (center of clamp to rear edge of armrest – 7.5 mm increments)
• Armrest Width: 57.5 – 140 mm
• Extension Height: 60 mm
• Extension Angle: 35° (12° at extension tip)
• Armrest Rotation: 0 – 13 °

Material: aluminium
Weight supplement: weighed by Bike24
