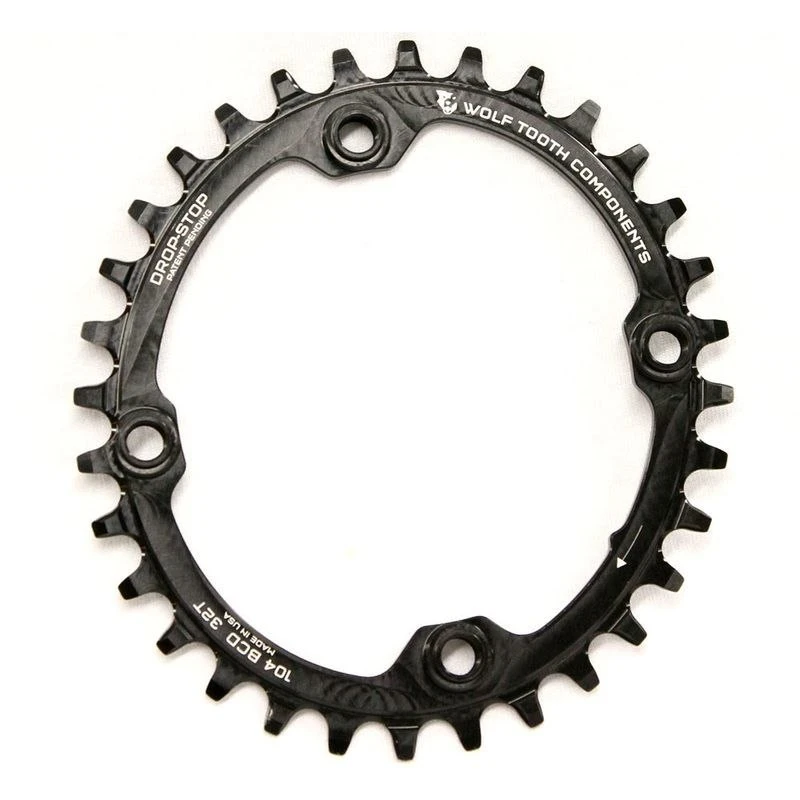

Wolf-tooth Wolf Tooth Elliptical – Single Chainring 104mm – Drop Stop – Black

The Wolftooth chainrings allow you to upgrade your 104mm BCD crank to 1×10 or 1×11-speed. Beautifully machined to match up with the arms of your crankset.

Wolf Tooth’s patent pending Drop-Stop wide/narrow tooth profile for the ultimate chain retention and mud shedding ability. Recommended is the use of a clutch style rear derailleur for the best chain security.

Get better traction and acceleration when you use Elliptical (or Oval, same thing) rings!
The simplest way to explain how they “feel” is that where your pedal stroke is weakest it feels like you have a 2 teeth less on the chainring and where you have the most power it feels like you have 2 more teeth. They feel this way because with the radius of the chainring constantly changing, the torque needed to turn the cranks is constantly changing to better match your power output. Example: a 34t chainring feels like a 32t in the weak part of your pedal stroke and a 36t in the part of the stroke where your legs have the most power.

Optimized for 10/11-spd chains, 9-spd may be to loose.

Powertrac

More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. The proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.

It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.

Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone”, while pedaling is easier during the “Recovery Zone”, so you maintain momentum.
Fitting for derailleur: 10-speed ||| 11-speed ||| 12-speed
Included in delivery: 1 chainring
Material: CNC machined 7075-T6 aluminium
Weight supplement: for 32 teeth)
approx. 48 gram (for 34 teeth)
approx. 55 gram (for 36 teeth)
(manufacturer’s specs
